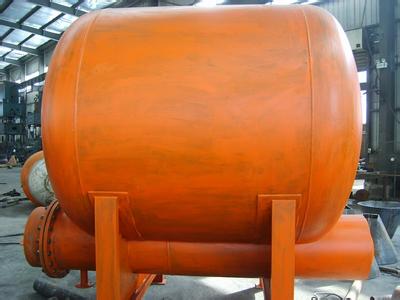

The oil-water separator

2015-01-20 12:45:14 点击数：

 1: oily wastewater from sewage pump into the oil-water separator, through rear diffuser nozzle, large particles of oil droplets that float on top of the left-oil collection chamber
        2: oil droplet-containing wastewater into the lower portion of the corrugated plate coalescers, in the polymerization section of oil droplets into larger droplets to the right oil collecting chamber
        3: wastewater containing oil droplets smaller particles through a fine filter out impurities in the water, turn into the fiber aggregator, so tiny droplets aggregated into larger droplets and water separation.
        4: After separation, clean water by excluding mouth eliminated about slop oil collection chamber through the solenoid valve automatically excluded, and in the fiber aggregator separated waste oil is excluded by manual valves.
The new design of a storage device, easy to operate, corrosion-resistant, strong production capacity, easy to clean, shock, etc., are stored in the production, one of the key equipment transport. Storage tanks with good insulation properties, the tank comes with the following devices: mixers, CIP cleaning spray, manholes, temperature holes, level indicator, bacteria breathing pores, sterile sampling port, into and out of the discharge port and so on.
        Stainless steel and non-ferrous metal storage tank equipment and reasonable design, advanced technology, automatic control, in line with national standards, vertical or horizontal tank with single or double layer structure, can be filled with insulation material according to user requirements.
According to different storage capacity by 50-15000L, storage capacity in the tank above 20000L recommended outdoor storage tanks. Material use imported SUS304 stainless steel.
